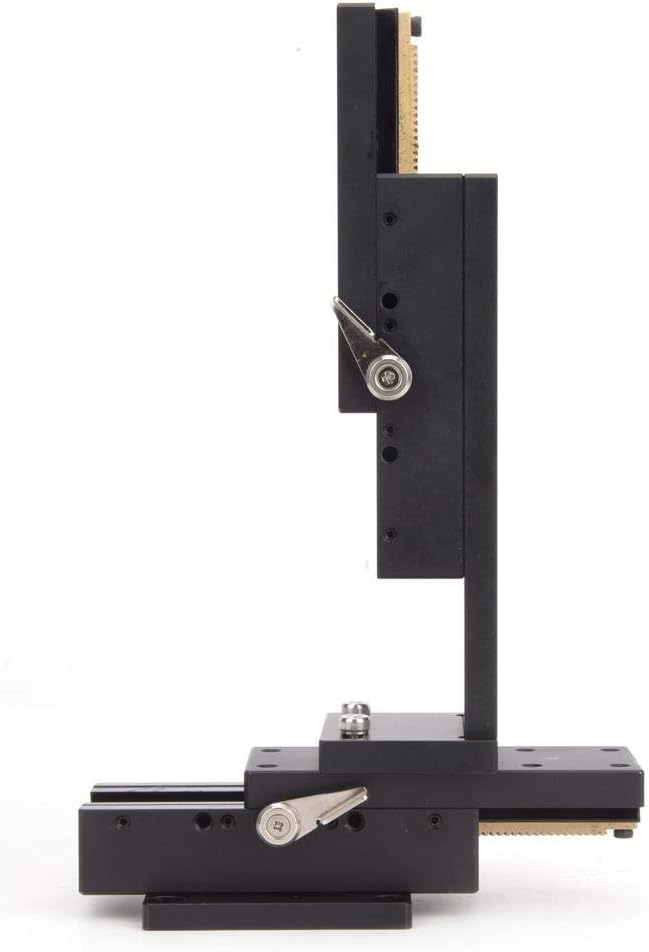

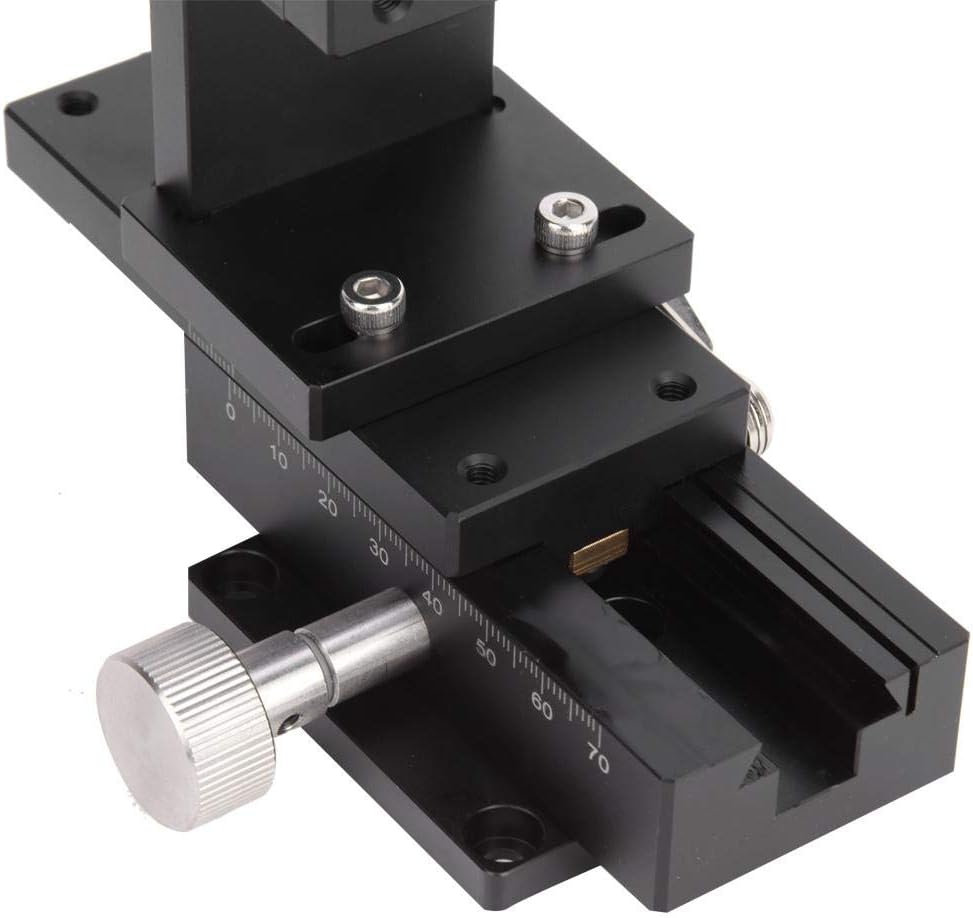

2-Axis XZ Manual Linear Stage, 10?m Resolution Scaled Lifting Platform, DIY Laboratory Equipment Accessories for Scienctic Experimental Industrial Use

Specification: Item Type: Manual Trimming Platform Model: SPWXZ40-90 Table Size: Approx. 40 x 90mm / 1.6 x 3.5in Overall Height: Approx. 167mm / 6.6in Moving Direction: XZ, 2 directions Body Material: Aluminum alloy (black anodized) Drive Method: Manually turn the knob to advance the gear drive (gear + rack) Sliding Track: Gear guide Guide Rail Type: Dovetail groove Number Of Countertop Threaded Holes: 10 Threaded Hole Diameter: Approx. 4mm / 0.16in Threaded Hole Depth: Approx. 6mm / 0.24in Load Resistance: 49N5Kgf Move Stroke: ±30mm Minimum Scale: 0.01mm Parallelism: 0.1mm Parallelism of Movement: 0.08mm/60mm Structure: Detachable Scope of Application: Optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, conveyors, processing machines, printing machines and other Package List: 1 x Manual Trimming Platform

• 【Easy to Use】Gear rotation is controlled by the handle, smooth and stable to move, and easy to control the length/height you moved.
• 【Micrometer】The linear stage adpot dovetail groove guide, with the measuring principle of a spiral micrometer, makes sure the high accuracy and large load capacity.
• 【Application】Suitable for optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, conveyors, processing machines, printing machines and other.
• 【Safety】With R corner protection, the accessory is safe to protect precision instrument and your toes when a accidental collision occured.
• 【Durable】The main body is made of aluminum alloy material, which is light weight, sturdy, resistant to friction.
